sku - 58650

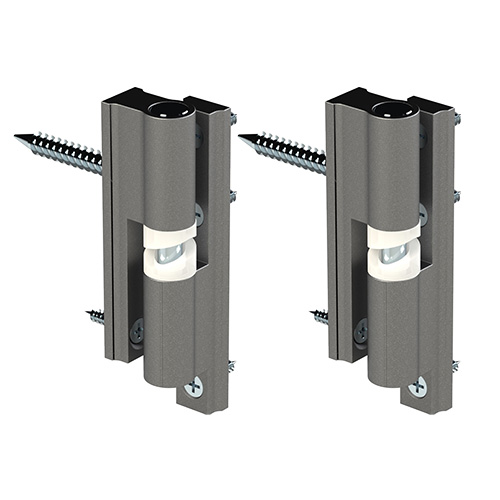

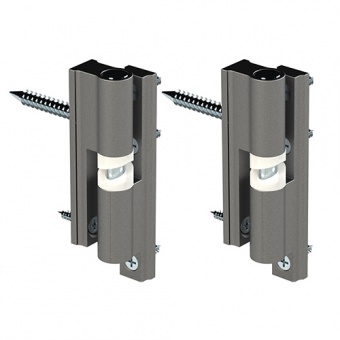

ALM - Cubicle System 20 Hinge Pair

This hinge is available to suit panel thicknesses over 17mm. The hinge is fitted to the edge of the door by a 6mm wood/metal dowel, this requires the edge of the door to be pre-drilled prior to fitting. The fascia component is simply screwed into the back of the fascia using three standard woodscrews. The hinge incorporates a pair of adjustable nylon cams which can be set to allow the door to fall fully open, fully closed or two positions in-between. A hidden screw is fitted to each hinge to prevent the doors from being lifted off, where immediate access is required these screws may be discarded so the door can be easily lifted off. Dark grey finish.


  • SKU
    58650
