SMARTPLY - OSB

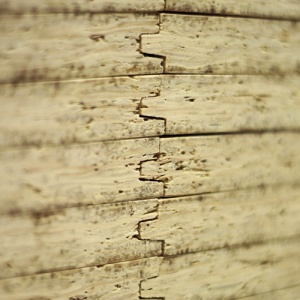

SMARTPLY OSB3 T&G - a strong, versatile structural board suitable for use in humid conditions (Service Class 1 & 2)

Applications: suitable for roofing and flooring applications in humid conditions (Service Class 1 & 2)

Features and Benefits: highly engineered, strong, moisture resistant, easy installation, sustainable, tongue & groove edge profile, zero added formaldehyde

Specifications: ideal for numerous load bearing applications such as roofing and flooring.

Download Datasheet

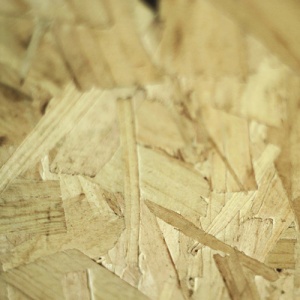

SMARTPLY OSB3 - a strong, versatile board suitable for structural use in humid conditions (service Class 1 and 2), ideal for applications as diverse as roofing, flooring, hoarding and wall sheathing

Applications: suitable for both interior and exterior structural applications such as roofing, flooring, wall sheathing and hoarding

Features and Benefits: durable, versatile, sustainable, zero added formaldehyde, excellent load-bearing

Specifications: in keeping with current construction methods of working towards healthier environments, all SMARTPLY OSB3 panel products have been manufactured using zero-added formaldehyde

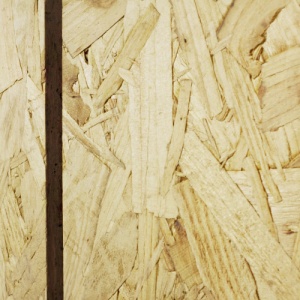

SMARTPLY PATTRESS PLUS - is an engineered OSB3 panel incorporating a continuous recess, designed to accommodate ‘C’ shaped metal studs used in the construction of plasterboard partitions

Applications: designed to provide support for fixtures and fittings in non-structural metal stud constructions, the ready prepared modular panels are quick and easy to use and fit all commercially available drylining stud systems. The high performance solid core OSB3 ensures secure anchorage at any point on the panel face. SMARTPLY PATTRESS PLUS does not add to the finished partition thickness and provides a robust partition structure suitable for use in public access areas including hospitals, laboratories, museums and schools

Features and Benefits: ready prepared modular panels, speeds up installation, CE marked, zero added formaldehyde, allows secure anchorage, versatile, provides a robust partition structure, solid core, fix to any point between studs

Specifications: It is tested to the relevant sections of BS5234 Part 2 demonstrating high pull-out strength. SMARTPLY PATTRESS PLUS is an OSB3 panel with zero added formaldehyde and therefore may also be useful in environmentally sensitive interior applications. Manufactured in accordance with EN300, SMARTPLY PATTRESS PLUS is a fully certified alternative to tropical plywood

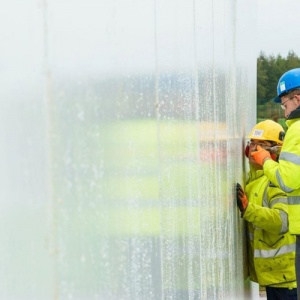

SMARTPLY SITEPROTECT - is a coated site hoarding panel, designed to save you time and money. The SMARTPLY OSB3 substrate has been coated with a smooth, heavy-duty, exterior cross-linked polymer primer, meaning you just have to apply a topcoat to the face and edges. To meet demand for a doubled sided board, there is now also SITEPROTECT PLUS

Applications: Developed specifically for use in applications from temporary construction site hoarding through to a range of security installations. SMARTPLY SITEPROTECT is ideal for painting and promoting your corporate colours. SMARTPLY SITEPROTECT PLUS is ideal for use in premier locations, where both sides of the site hoarding may be visible

Features and Benefits: durable, pre-primed, ready-to-paint, edge coated, smooth finish, high performance, sustainable, cost-effective construction site hoarding

Specifications: This OSB3 panel is coated with the primer on both sides, making it ideal for premium applications in those high profile locations.

SIZES:

• 2440 x 1220mm x 18mm
• 2440 x 1220mm x 16mm

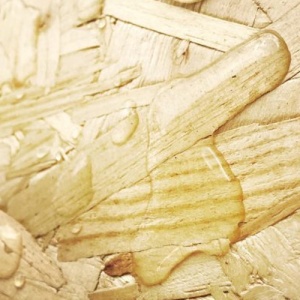

SMARTPLY ULTIMA is an extremely high-performance engineered wood panel (OSB4) suitable for the most demanding structural applications in offsite manufacturing and construction

Applications: Offsite construction systems, panelised systems (timber frame; steel frame; SIP’s), volumetric 3D modular builds (Pods), commercial buildings (e.g insulated infill panels), industrial buildings (e.g Mezzanine flooring), ‘Massive’ OSB construction systems, hybrid construction (e.g. Cross Laminated Timber, CLT), site-based construction (e.g. Insulated Concrete Formwork, ICF), engineered timber components (e.g. roof cassettes; box beams), industrial packaging (e.g. automotive; aeronautical), decorative applications (bright, smooth surface)

Features and Benefits: A highly engineered OSB4 panel, ideal for timber frame and construction projects with large spans, increased racking strength, high load-bearing capacity, enhanced moisture resistance, improved rigidity

Specifications: SMARTPLY ULTIMA is manufactured using state of the art ContiRoll® technology consisting of moisture resistant and formaldehyde-free bonding of wood strands, precision strand orientation and continuous pressing to produce large panels up to 2.8m wide by 7.5m long and to a maximum thickness of 40mm. It is a cost-effective alternative in humid and high-load structural applications when compared to a similar performing exterior structural plywood

Download Datasheet

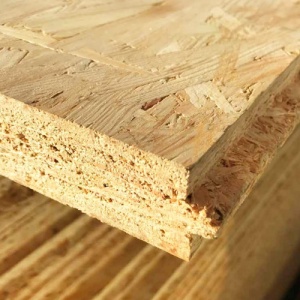

SMARTPLY STRONGDECK -  an extremely high-performance engineered wood panel suitable for the most demanding structural applications. It is manufactured using state of the art ContiRoll® technology consisting of moisture resistant and formaldehyde-free bonding of wood strands, precision strand orientation and continuous pressing

Applications: durrable mezzanine flooring, heavy duty, load bearing environments, Space saving racking, heavy duty shelving, garment/package handling multi-tier warehousing, industrial warehousing and storage unit floor space additions, humid environments

Features and Benefits: moisture resistant, stronger than P5 alternatives, quicker to install, zero added formaldehyde, suitable for use in service class 2 conditions, reduced thickness swell

Specifications: EN 300 classifies OSB panels by their properties which relate to their intended use. SMARTPLY STRONGDECK is classified as follows:

• OSB/4 – Heavy-duty load-bearing panel for use in humid conditions

Structures comprising SMARTPLY OSB/4 should be assigned to service class 1 or 2 as defined in EN 1995-1-1 (Eurocode 5). According to this standard, SMARTPLY OSB/4 is suitable for use in both of these service classes. Although OSB/4 is more resistant to moisture than OSB/3, this does not mean that the panel is waterproof. SMARTPLY accepts no liability for any damage or loss of strength caused by prolonged water exposure during the construction process, or during the service life of the product

Download Datasheet
