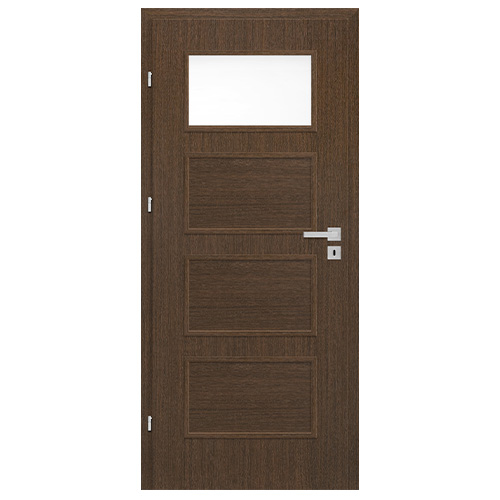

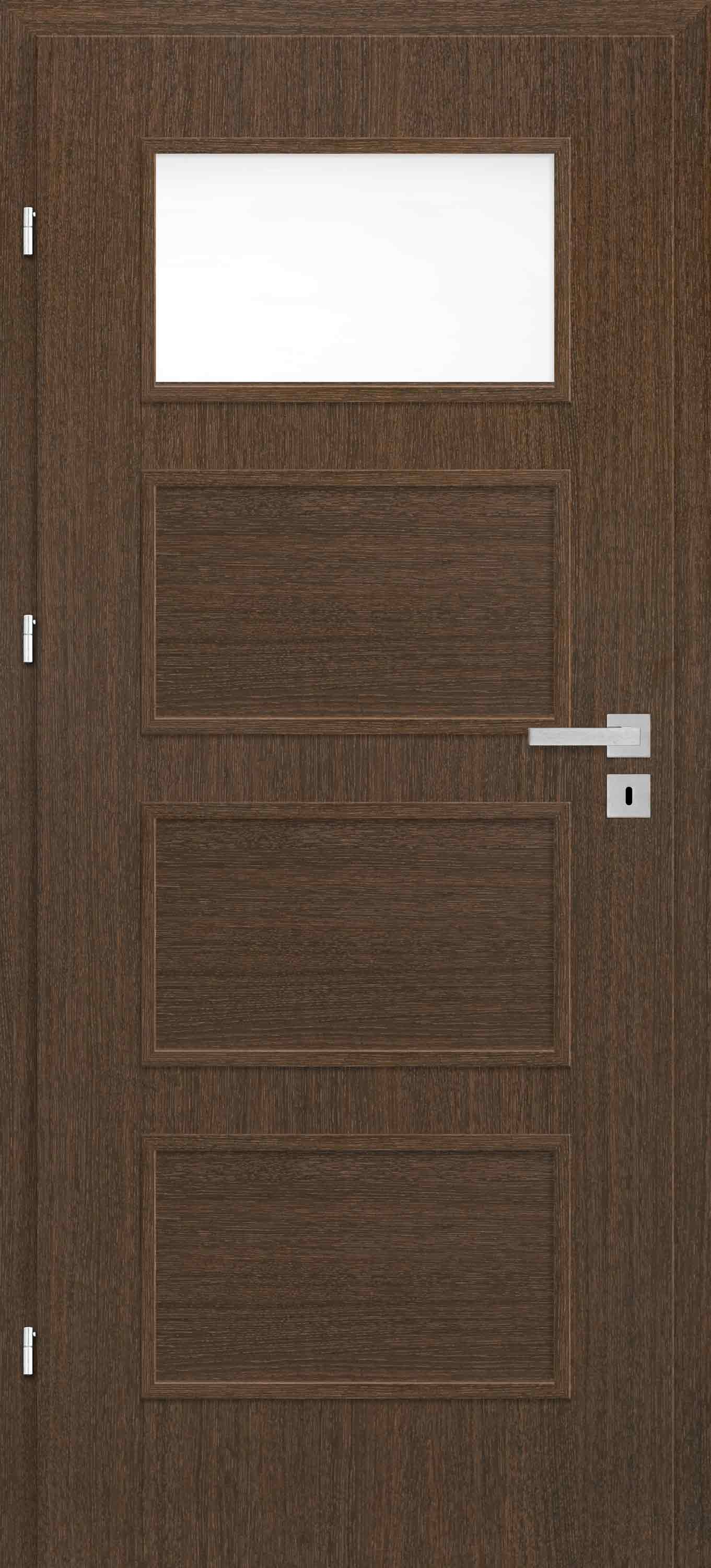

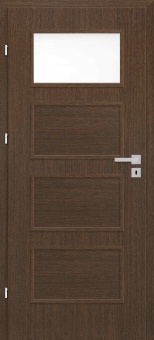

ERKADO - Sorano 7 Flush Doors

Internal Door Kits

Full kit includes:

• Door leaf
• frame
• hinges
• handle

Construction:

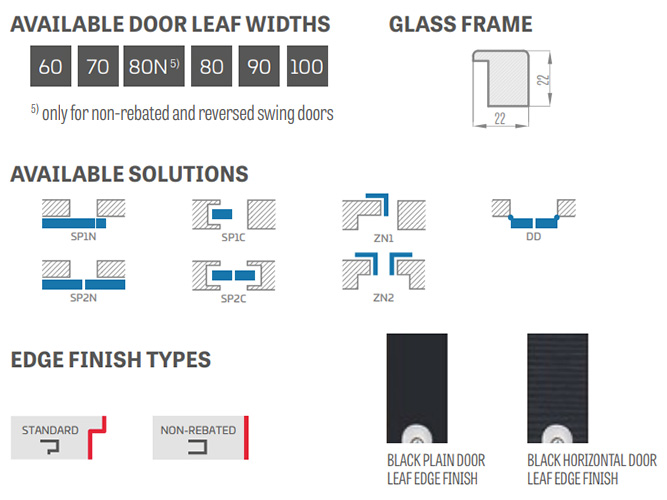

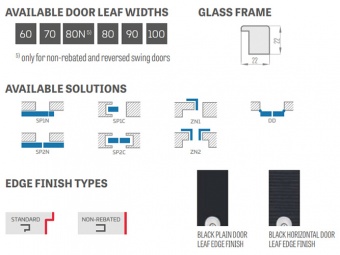

• rebated, non-rebated or reverse door leaf

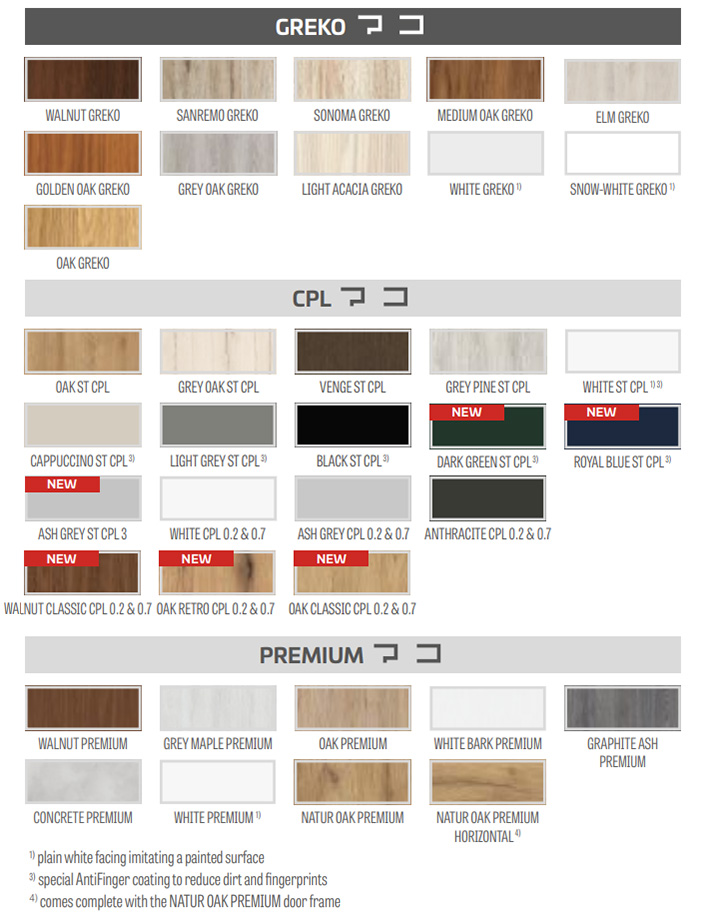

• MDF stiles and rails covered with two HDF boards in GREKO decors
• internal timber stiles and top rail, MDF bottom rail, covered with two HDF boards in CPL and PREMIUM facing layer
• rigid honeycomb infill or solid core infill for additional charge
• optional door frame extension panels and a crosshead with pilasters are available for an additional charge
• the door can be trimmed by a customer

Finishing:

• door leaf edge made in the STANDARD technology
• CPL 0.2 & 0.7 laminates available only with the STANDARD edge with the ABS edging in the same colour as the door leaf only or, for an additional charge, with a standard black edge
• edge (in the standard or non-rebated finish) faced with an edging in the same colour as the surface or, optionally, in plain black (black edging with transverse NATUR OAK PREMIUM, a black edge with a transverse structure)

Hardware:

• three pin mortise hinges in a rebated door leaf
• three concealed hinges in the non-adjacent leaf and two hinges in the reverse leaf in silver (black or golden against an extra charge); hinges are supplied and priced with the door frame
• a lever tumbler lock in the rebated door leaf and a key-locked magnetic lock (lever tumbler lock as an option) in the non-rebated and reverse door leaves, thumb turn cylinder, economy or silver with a blockade or, optionally, for an additional charge, a black or golden magnetic lock

Glazing:

• tempered frosted Decormat glass as standard, clear or, charged extra, frosted VSG 221 safety glass, plain on both sides
• possibility to change the glazing side to REVERSE (standard glazing for OBVERSE)

Extra Charges:

• reverse door leaf (unavailable for CPL 0.2 and 0.7)
• solid core filling
• door closer reinforcement
• arm door closer (silver, black, white, brown)
• additional bottom rail (can be trimmed by a customer up to max 8 cm)
• door undercut, air gap undercut or ventilation grille
• metal round or square ventilation sleeves (4 pcs); brushed nickel or patina finish in white or black
• plastic sleeves
• rebated and non-rebated leaf "100" rebated and non-rebated leaf "110"
• frosted VSG 221 laminated glass
• drop down seal 2)
• metal hinge casings in the rebated door leaf (brushed nickel, patina, polished chrome, polished brass, white and black)
• ALTAMURA 1: stainless steel porthole: polished “chrome” or brushed “satin” and black matt; frosted decormat glass, non-tinted glass; porthole diameter: internal: 235 mm; external 350 mm)
• stainless steel panel (fitted on both sides in the rebated STANDARD door leaves only), height 300mm
• black door leaf edge finish
• can be replaced with a black or golden magnetic lock for non-rebated and reverse leaves
• magnetic stop (buffer) 2) (available in six colours)
• PL2112 standard + 15% on the door price before surcharges
