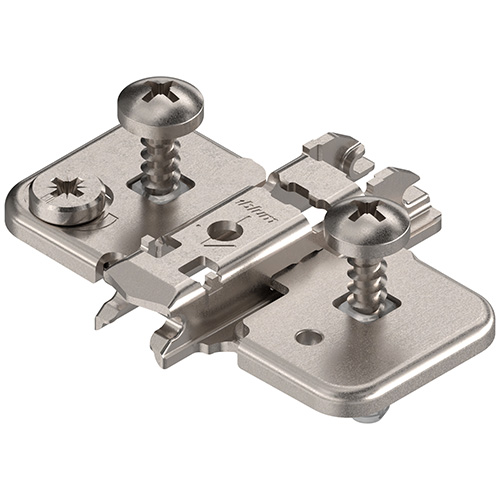

Blum Hinges Suitable for 12/13mm CDF/Lockers, CLIP mounting plate, cruciform, 0 mm, steel, Expando (pre-mounted screws with split dowels)
Product features:
- HA: cam
- Mounting plate system: CLIP
- Shape of mounting plate: Cruciform
- Upper part material: Steel
- Surface of bottom part: Nickel plated
- Fixing: Expando (pre-mounted screws with split dowels)
- Distance cabinet front edge to first fixing position: 37
- Diametre of fixing holes: 5
- Drilling depth of fixing holes: 11.5
- Mounting plates height adjustment: With cam Height adjustment: +/- 2 mm
- Height: 8.5
- Spacing: 0
- Angle: 0
- material of bottom part: Steel
