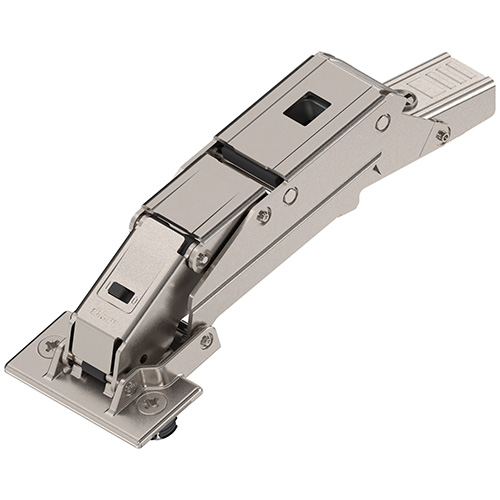

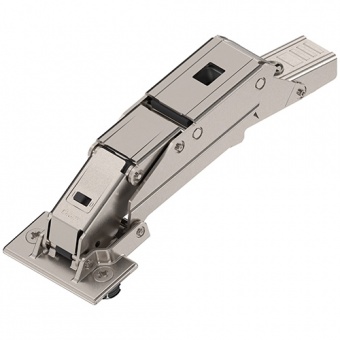

Blum Hinges Suitable for 12/13mm CDF/Lockers, CLIP top BLUMOTION Hinge for thin doors 110°, boss: EXPANDO T
Product features:
- Application: Hinge for thin doors
- Opening angle: 110
- Closing mechanism: with spring
- Hinge variant: With integrated BLUMOTION
- Boss material: Zinc boss
- Boss finish: Nickel plated
- Boss assembly: EXPANDO T
- Flange width: 44
- Flange length: 22
- Flange height: 2.2
- Diametre of fixing holes: 10
- Distance between drillings: 32
- Minimum drilling distance: 23.5
- Maximum drilling distance: 46
- Arm material: Steel
- Arm finish: Nickel plated
- Collision measurement (hinge arm height): 56.5
- Fixed dimension / factory setting: -3.5
- Type of side adjustment: With screw
- Side adjustment: +/- 2 mm
- Type of depth adjustment: convenient with spiral screw
- Depth adjustment: + 3/- 2 mm
- Gap: 1.5
